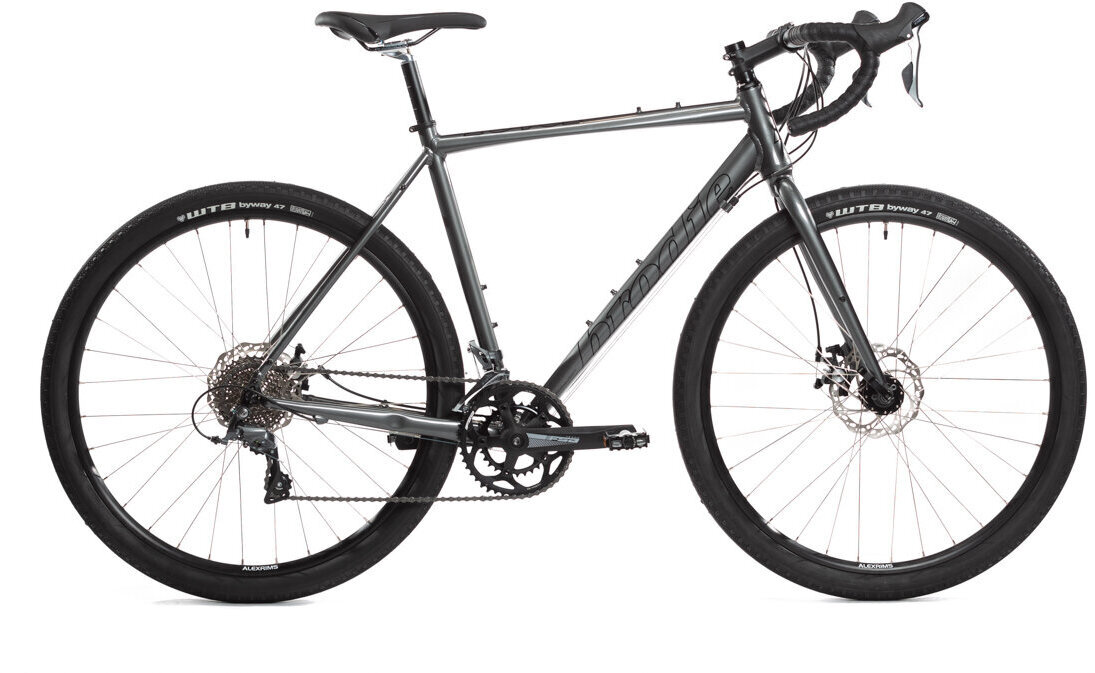

Brodie Revel
Details
Road Plus, Gravel, Touring, Bike-Packing
For the person - who wants a road bike that is way more versatile and stronger than any road bike, something that is definitely NOT light duty. New routes may include gravel routes, forrest roads, rough shoulders, unmaintained bike 'paths', exposed train or tram tracks, or a tour to the wilderness, where roads may not suit a typical road bike.
The Revel is Road PLUS. For the Mixed terrain adventure seeker, long-distance gravel rider, cross-country tourer, daily year-round commuter, gravel fondo riders. The Revel is for Year round cyclists looking for a bike that will not hold them back. The Revel works for; fitness, bike-packing, short or long touring, and even for all weather commuting.
Specs
| Frame | 6061 Butted Aluminum |
|---|---|
| Fork | 4130 Chromo Steel |
| Headset | FSA No. 10 for 44mm Headtube |
| Rims | Alex MD 19 w/stainless eyelets, anti-pinch |
| Hubs | Front: Firumal QR 32H, Rear: Shimano M475 QR 32H |
| Tires | 650b WTB Byway 47mm |
| Crankset | FSA Tempo Adventure 46/30T |
| Front Derailleur | Shimano Claris |
| Rear Derailleur | Shimano Claris |
| Rear Cogs | HG41 Shimano 8 Speed - 11-32T |
| Shifters | Shimano Claris |
| Handlebars | Brodie Alloy DB Compact |
| Tape/Grips | Microfibre Shockproof & Perforated Road Tape |
| Stem | Brodie 3d forged Aluminum |
| Brake Levers | Pro Max |
| Brakes | Pro Max DSK 300R Disc |
| Pedals | KMC Z7 |
| Saddle | Brodie Road |
| Seat Post | Brodie Alloy 27.2 |
| Accessories & Extras | Derailleur Hanger Part #4200-997-200 |
| Color(s) | Light Grey Polish |
| Weight | 26.75 lbs |
* Subject to change without notice.
Part Numbers
| Option | UPC | Store SKU |
|---|---|---|
| XS (46) | 055849500631 | BRO19952485Y |
| Small (49) | 055849500648 | BRO19286581Y |
| Medium (53) | 055849500655 | |
| Large (56) | 055849500662 | |
| X-Large (59) | 055849500679 | BRO19142502Y |
| XXL (62) | 055849500686 |
