Frame	FORM™ Alloy \| Full Sealed Cartridge Bearings \| Press Fit BB \| Internal Cable Routing \| 2-Bolt ISCG05 Tabs \| RIDE-4™ Adjustable Geometry \| 2 Position Axle \| 140mm Travel. FORM™ Alloy Rear Triangle
Fork	RockShox 35 Gold RL 150mm \| 27.5 = 37mm Offset \| 29 = 42mm Offset
Headset	FSA ZS56\|66 Reach Adjust\| 0mm Cups Installed \| +/- 5mm Cups Included \| Sealed Stainless 36°x45° Bearings \| 30.2mm x 41mm x 7.1mm Upper \| 40mm x 51.8mm x 7.5mm Lower \| 1.5" Crown Race
Rear Shock	RockShox Deluxe Select RT \| Sealed Bearing Eyelet \| 20x8mm F Hardware \| XS - SM = 190x45mm \| MD - LG - XL = 210x52.5mm \| Size-Specific tune in FAQ
Rims/Wheels	WTB ST i30 TCS 2.0 Tubeless \| 28H / Tubeless Ready - Tape / Valves Incl
Hubs	REAR: Shimano TC500 Boost 148mm \| 28H FRONT: Shimano TC500 \| 15x110m \| 28H
Spokes	2.0 Stainless
Tires	F: Maxxis Dissector 2.4 WT EXO Tubeless Ready // R: Maxxis Dissector 2.4 WT EXO Tubeless Ready
Crankset	Shimano Deore \| 32T \| 24mm Spindle Crankarm Length: XS - SM = 165mm \| MD - XL = 170mm
Chainwheel	Shimano Deore \| 32T \| 24mm Spindle
Bottom Bracket	Shimano SM-BBMT500
Chain	Shimano M6100
Rear Derailleur	Shimano Deore 12spd
Rear Cogs	Shimano Deore 10-51T 12spd
Shifters	Shimano Deore 12spd
Handlebars	Rocky Mountain AM \| 780mm Width \| 25mm Rise \| 9° Backsweep \| 5° Upsweep \| 31.8 Clamp
Tape/Grips	ODI Elite Pro Lock On
Stem	Rocky Mountain 31.8 AM \| 5° Rise \| All Sizes = 40mm
Brakes	Shimano MT4120 4 Piston \| Resin Pads
Saddle	WTB Volt 142
Seat Post	X Fusion Manic Composite 30.9mm \| XS = 125mm \| SM = 150mm \| MD - LG = 170mm \| XL = 200mm
Color(s)	Grey Beige Only
Sizes	XS,S,M,L,XL

* Subject to change without notice.

Part Numbers

Option	UPC	Store SKU
X-Small
Small	770416533064	INS18377078O
Medium	770416533026	INS18731488O
Large	770416532982	INS18525830O
X-Large	770416533149	INS18935383O

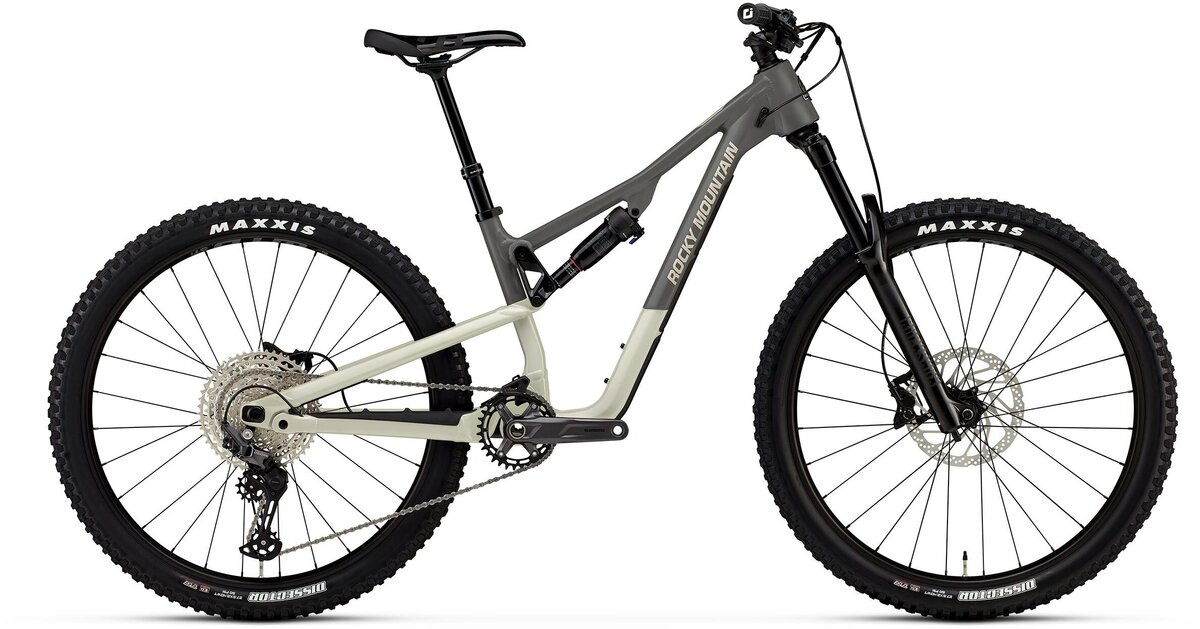

Rocky Mountain Instinct A30
