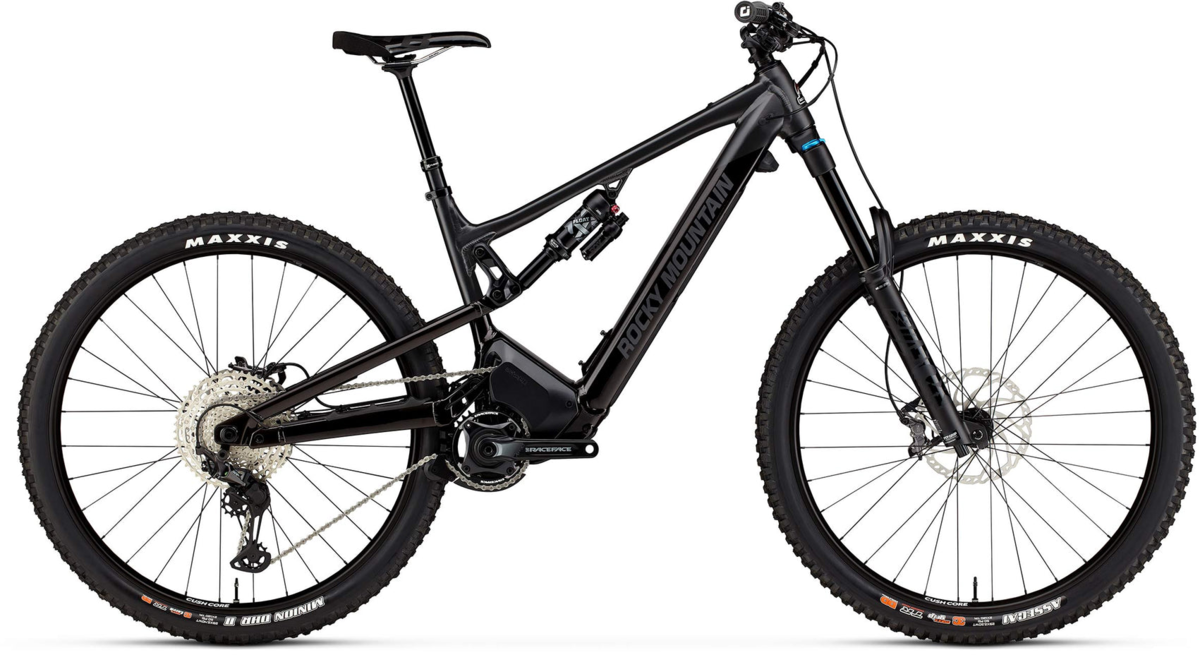

Rocky Mountain Altitude Powerplay A70 Shimano

Rocky Mountain Altitude Powerplay A70 Shimano
  • Color: Brown/Carbon/Black
  • Color: Green/Green
$7,919.20 - $9,899.00
$9,899.00
Color:
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable
Order now and pick up in-store for free

Details

Designed alongside our Dyname 4.0 drive system, the Altitude Powerplay has everything you need for aggressive enduro e-biking. The Altitude Powerplay shares the many of the same attributes as our race proven Altitude—geometry, kinematics, and adjustability.

Sizes:
SMMDLGXL
Top Tube Horizontal (mm) 587 612 639 673
Head Tube Angle (deg) 63.5 63.5 63.5 63.5
Head Tube Length (mm) 100 100 110 125
Seat Tube Angle (deg) 75.5 75.5 75.5 75.5
Seat Tube Length (mm) 380 420 445 480
Rear Centre (mm) 439 439 439 439
Bottom Bracket Drop (mm) 20 20 20 20
Reach (mm) 425 450 475 508
Stack (mm) 629 628 638 652
Standover Height (mm) 834 832 831 831
Wheelbase (mm) 1210 1237 1264 1301
Sizes:
Frame SizeMeasurements
Small 157.5 - 170 cm / 5’2” - 5’7”
Medium 167.5 - 177.5 cm / 5’6” - 5’10”
Large 175 - 188 cm / 5’9” - 6’2”
X-Large 185.5 - 198 cm / 6’1” - 6’6”

Specs

Frame FORM™ Alloy | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-4™ Adjustable Geometry + Suspension Rate | 160mm Travel. FORM™ Alloy Rear Triangle
Fork Fox 38 Float EVOL GRIP Performance Series 170mm | 44mm Offset
Rear Shock Fox Float X Performance | Sealed Bearing Eyelet | 25x8mm F Hardware | All Sizes = 230x62.5mm | Size-Specific tune in FAQ
Rims WTB ST i30 TCS 2.0 Tubeless | 32H / Tubeless Ready - Tape / Valves Incl
Hubs Front Hub: Rocky Mountain SL Sealed Boost 15mm
Rear Hub: DT Swiss Hybrid 370 Boost 148mm | 18T Star-Ratchet
Spokes F : DT Swiss Champion 2.0 | R : DT Swiss Alpine 2.3/2.0
Tires F: Maxxis Assegai 2.5 WT 3C MaxxGrip DD Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready // Cushcore Trail Tire Inserts | Lightweight | Tire & Rim Protection
Bottom Bracket Shimano SM-BBMT500
Crankset Race Face Aeffect Cinch 34T | 24mm Spindle | Crank Length: SM - MD = 165mm | LG - XL = 170mm
Shifters Shimano XT
Rear Derailleur Shimano XT
Cassette/Freewheel Shimano Deore 10-51T 12spd
Chain Shimano M6100
Brakes Shimano XT Trail 4 Piston | Metal Pads
Handlebars Rocky Mountain AM | 780mm Width | 38mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp
Tape/Grips ODI Elite Pro Lock On
Stem Rocky Mountain 35 AM | 5° Rise | All Sizes = 40mm
Headset FSA Orbit NO.57E ZS44|56 | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Seatpost X Fusion Manic Alloy 30.9mm | Shimano MT500 Remote | SM = 125mm | MD = 150mm | LG = 170mm | XL = 200mm
Saddle WTB Volt Race 142
Accessories & Extras Rocky Mountain Micro Remote
Motor Dyname 4.0 Mountain Bike Drive | 700W Max Power | 250W Nominal Power | 108Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada
Battery 720 Wh Removable Integrated Li-Ion | 100% Charged in 3:55 (4A) / 7:35 (2A) | 80% Charged in 2:55 (4A) / 6:05 (2A)
Controller/Display Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration
Charger Rocky Mountain Powerplay FAST Charger V1 | 4A | 48V | Higo Deep Socket Connector | Overtimepack Compatible (Dyname 4)

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Brown/Carbon/Black / Small / 29-inch 770416475272 B0307SM2CA
Brown/Carbon/Black / Medium / 29-inch 770416475470 B0307MD2CA
Brown/Carbon/Black / Large / 29-inch 770416475678 B0307LG2CA ALT27467515O
Brown/Carbon/Black / X-Large / 29-inch 770416475876 B0307XL2CA
Green/Green / Small / 29-inch 770416475173 B0307SM1CA
Green/Green / Medium / 29-inch 770416475371 B0307MD1CA
Green/Green / Large / 29-inch 770416475579 B0307LG1CA
Green/Green / X-Large / 29-inch 770416475777 B0307XL1CA
